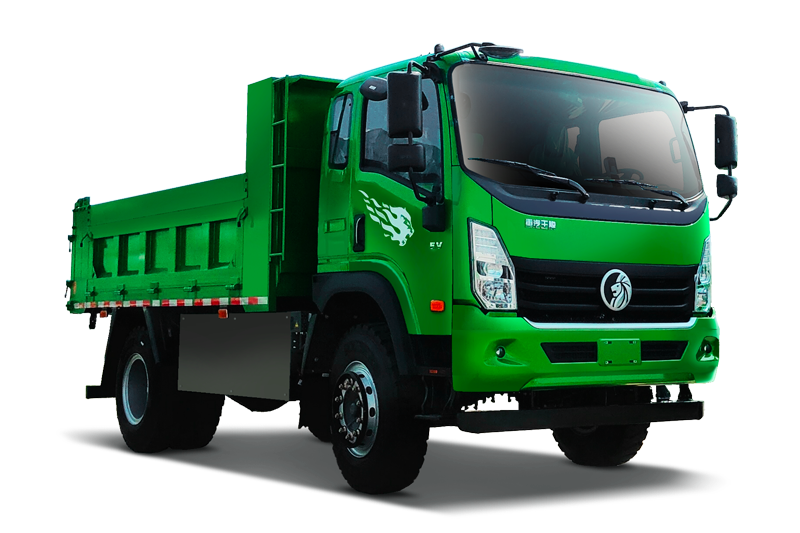

SINOTRUK CDW V3-X EV Dump Truck
Sinotruk CDW V3 series is mainly used in engineering construction and short distance transportation of construction slag and earthwork. It is a mid to high end light truck built with the concept of 'sturdy, durable, energy-saving and efficient', with strong power, strong load-bearing capacity and high efficiency. Ace's unique patented frame, load-bearing capacity and high range, product reliability has been fully verified by the market and highly praised by users, suitable for various working conditions and scenarios.
Configuration parameters
| Drive Type | 4×2 | ||
| Cabin | Model | V3-X Extd | V3-X Extd |
| Seat | Mechanical/Airbag | Mechanical/Airbag | |
| A/C | MT | MT | |
| Motor | Model | TZ365XSCDW07 | TZ380XSCDW08 |
| Power | 115/170kW | 120/185kW | |
| Battery | Capacity | 141kWh | 162kWh |
| Type | Recharge | Recharge | |
| Gearbox | Model | J4S100A | J4S100A |
| Axle | Front Axle | 3T | 3.6T |
| Rear Axle | 7.2T | 10T | |
| Chassis | Frame | 8/200 | 10/250 |
| Wheelbase | 3500 | 3500/3650 | |
| Brake | ABS air-brake | ABS air-brake | |
| Suspension | Less-front/Multi-rear 149L/149L (11/11+9) | Less-front/Multi-rear 149L/149L (11/11+9)、149L/153R(11/11+9) | |
